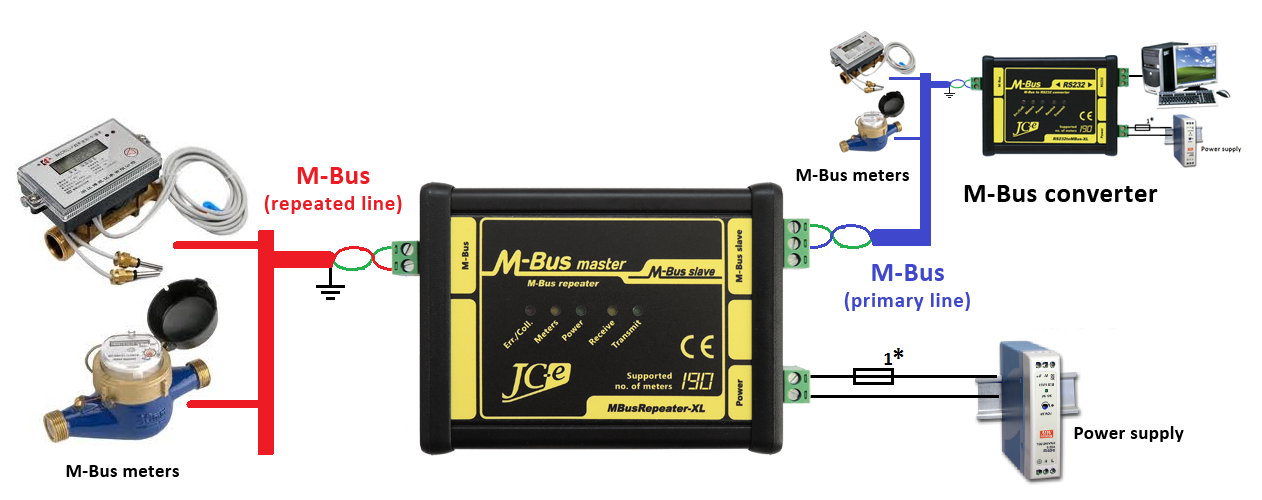

			| Power consumption | 2 slave devices (2UL) |
			| Protection | over voltage protection TVS 600W, filters |
			| Galvanic separation | >1kV from power supply, 1kV from M-Bus master line |
			| Connector | terminal block with plug-in connector for wires of up to 2.5 mm2 cross-section area |

			|
			| Number of attachable devices - XL45 | 1 to 45 SLAVE devices, idle current max. 67.5mA |
			| Number of attachable devices - XL80 | 1 to 80 SLAVE devices, idle current max. 120mA |
			| Number of attachable devices - XL120 | 1 to 120 SLAVE devices, idle current max. 180mA |
			| Number of attachable devices - XL190 | 1 to 190 SLAVE devices, idle current max. 285mA |
			| Baud rate | 300 - 9600 bps |
			| Protection | - overvoltage protection TVS 1500W |
			| - electronic protection against overloads and short circuit on the communication line |
			| - electronic protection against external voltage |
			| note: converter can withstand sustained short circuit on the communication line |
			| Galvanic separation | 1kV from power supply, 1kV from M-Bus slave line |
			| Connector | terminal block with plug-in connector for wires of up to 2.5 mm2 cross-section area |
			|
			| Recommended range of power supply voltages |
			| DC power supply | 12V to 30V, model XL190 20V to 30V |
			| Maximum limits of supply voltage - permanent operation at these voltages is not recommended |
			| Minimum DC voltage | 11V - min. voltage required for converter operation |
			| Maximum DC voltage | 31V - at higher the overvoltage protection starts to activate |
			| Protection | - overvoltage protection TVS 1500W |
			| - power supply polarity reversal protection |
			| Power consumption | 0.85W to 15W depends on converter model and number of M-Bus devices connected |
			| Connector | terminal block with plug-in connector for wires of up to 2.5 mm2 cross-section area |
			|
			| Power - green | power indication. Indicates a converter malfunction when flashing. |
			| Transmit - green | indication of data transmission on the M-Bus master line |
			| Receive - yellow | indication of data reception on the M-Bus master line |
			| Meters - yellow | indication of M-Bus meters on the master line |
			| Err./Coll. - red | indication of error, overload, collision on the M-Bus master line |
			| Note: For further details on LED indication see manual. |
			|
			| Operating range | -40°C to 70°C |
			|
			| Mechanical design | aluminium box |
			| Mounting | 35 mm DIN rail  (EN 50022 top hat rail) |
			| Dimensions: height x width x length | 38 x 81.5 x 107 mm - without connectors |
			| 38 x 81,5 x 125 mm - with connectors |
			| Protection classification | IP40 |
			| Weight | 220g (XL45, XL80)   240g (XL120, XL190) |


			EMC compatibility of the M-Bus converter has been tested according to the following industrial environment standards.


			|
			| Standard | Test | Level |
			| EN 55011 | Power line - CONDUCTED EMISSIONS 10/150 kHz - 30 MHz | Class A |
			| EN 55011 | RADIATED EMISSIONS (Electric Field) 30 MHz - 1000 MHz | Class A |
			|  |
			|
			| Standard | Test | Level |
			| EN 61000-4-2 | ELECTROSTATIC DISCHARGE (ESD) - Contact discharge | ± 4 kV |
			| EN 61000-4-2 | ELECTROSTATIC DISCHARGE (ESD) - Air discharge | ± 8 kV |
			| EN 61000-4-3 | RADIATED RADIO-FREQUENCY ELECTROMAG. FIELD 80MHz - 1GHz | 10 V/m |
			| EN 61000-4-3 | RADIATED RADIO-FREQUENCY ELECTROMAG. FIELD 1.4GHz - 2GHz | 10 V/m |
			| EN 61000-4-3 | RADIATED RADIO-FREQUENCY ELECTROMAG. FIELD 2GHz - 2.7GHz | 3 V/m |
			| EN 61000-4-4 | ELECTRICAL FAST TRANSIENT/BURST - Power line | ± 4 kV |
			| EN 61000-4-4 | ELECTRICAL FAST TRANSIENT/BURST - M-Bus master, slave line | ± 4 kV |
			| EN 61000-4-5 | SURGE IMMUNITY - Power line. Common/differential mode. | ± 1 kV / ± 500 V |
			| EN 61000-4-5 | SURGE IMMUNITY - M-Bus master, slave line. Cable shielding. | ± 4 kV |
			| EN 61000-4-5 | SURGE IMMUNITY - M-Bus master line. Common/differential mode.* | ± 4 kV / ± 2 kV |
			| EN 61000-4-6 | CONDUCTED DISTURBANCES, INDUCED BY RADIO-FREQUENCY | 10 V |
			| FIELDS 0.15MHz - 80 MHZ. M-Bus line |

			* test carried out at the request of the manufacturer.
			The M-Bus port of the repeater has an increased durability against overvoltage. Carrying out this type of test is not required with the use of shield cable.
